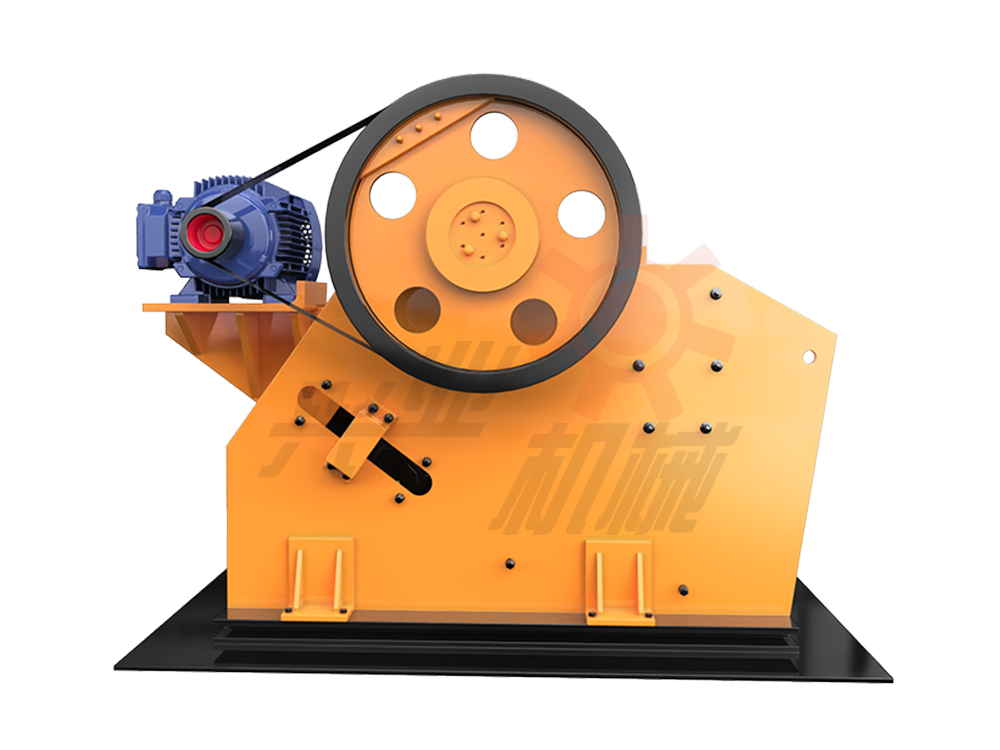

 PV Series Jaw Crusher
 您所在的位置:首頁 > PRODUCTS

PV Series Jaw Crusher

來源:興業機械 日期:2024-07-17 人氣:36


Product Description

PV series Jaw Crusher is our newly research and developed type Jaw Crusher which combines many year, s practical experience,  absoebing advanced technology and adopting advanced design instrumentalities. The crusher can crush various materials less  than 320MPa compressive strength. The crusher is widely applied in various industries including mining, smelt, building materials, highway, railway, water conservancy, chemical industry, etc. It is suitable for the primary crushing of various ores and rocks,  like limestone, iron ore, basalt, granite, etc.


The main part consists of

1、Frame Part 2、Fixed Jaw Plate 3、Swing Jaw Plate 4、Jaw stock 5、Eccentric Shaft 6、Motor Seat 7、Tension Rod+Spring Section 8、Toggle Seat 9、Toggle Plate



Characteristics

1、Special V-type Chamber design, achieving large stroke, better crushing performance and capacity, as well as high crushing  efficiency, offering up to a 30% increase in performance over the PE range.

2、Adopts entirely welding structure frame. It has advantages of strong rigidity, light weight, low consumption, convenient  installation, etc.

3、Discharge port adjusted conveniently. Using rotary screw rod to control the wedge thickness mechanically, and then adjust  the discharge opening size, it helps to achieve convenient adjustment and wider adjusting scope.

4、Motor attached on machine frame, saving installing space.

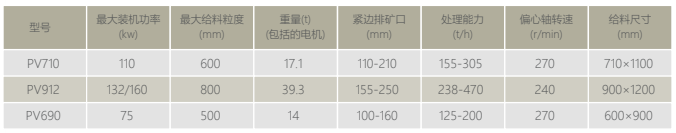

Technical Data Sheet

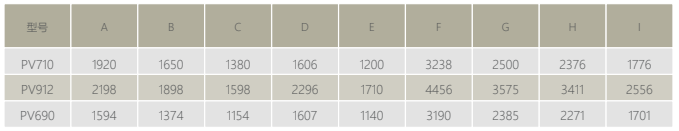

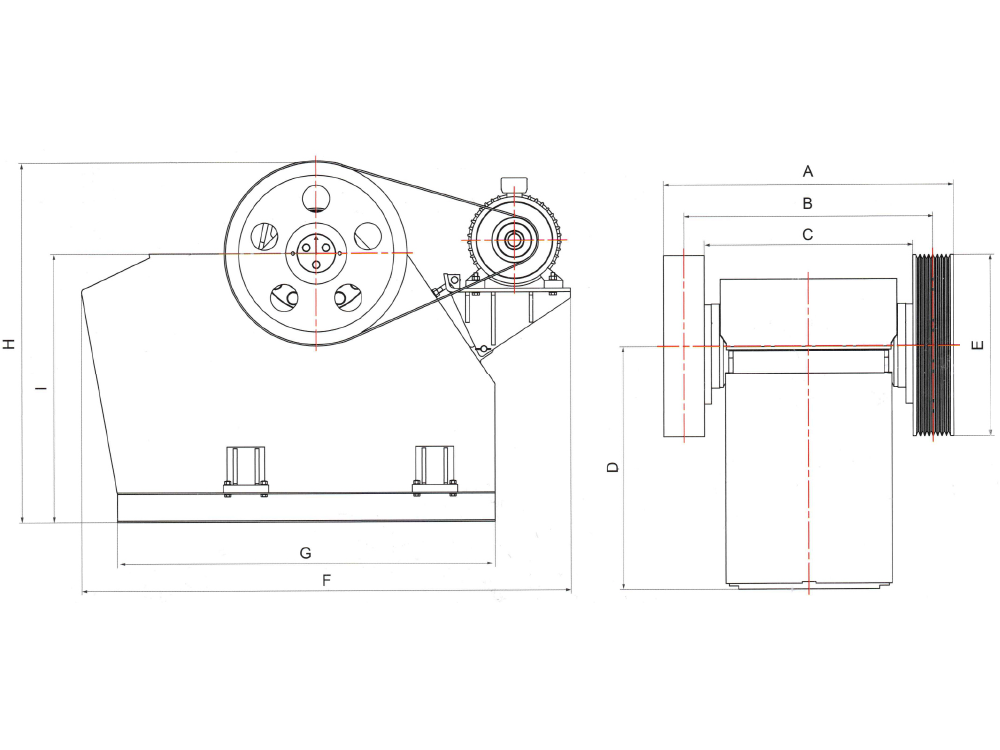

Overall Dimension
